Polymers Produtcs
Nylon Round Bars
The exceptional bearing and wear properties of Nylon Rod make it one of the most widely used plastics in the world. Nylon is frequently used as a replacement for bronze, brass, aluminum, steel and other metals, as well as other plastics, wood, and rubber.
Features & Benefit:
• Dia : 6 mm to 250 mm
•Length : 1 meter
•High tensile strength and modulus of elasticity
• High impact resistance, a high heat distortion temperature
• Resists wear, abrasion, and vibration
• Can withstand contact with chemicals, alkalies, dilute acids or oxidizing agents.
Nylon Sheets
Being an industry leader, we offer Nylon Sheet in wide variety to our valuable clients. Available in natural off-white and black, these sheets have bearing and wearing properties. These sheets are used as a replacement for bronze, brass, aluminum, steel and other plastics like rubber and wood.
Some of the features of these sheets are as follows:
• Available in Natural, Black, MD, Glass-Filled, Oil-Filled & various other compounds
• High impact resistance, a high heat distortion temperature
• High impact resistance, a high heat distortion temperature
• Can withstand contact with chemicals, alkalies, dilute acids or oxidizing agents.

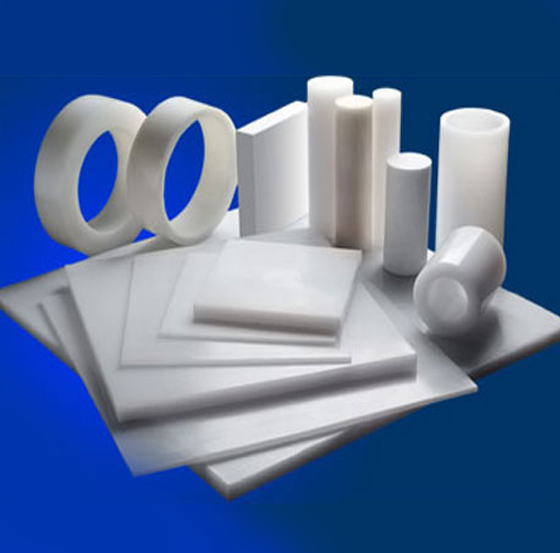

P.T.F.E Round Bars | Bushes ( Teflon )
We also offer high quality PTFE rods (Teflon), bushes, PTFE(Teflon) tubes and PTFE(Teflon) sheets for different requirements of our clients. Superior in quality, these products are known for their durability and performance and are available with following specifications.
Bushes Specifications:
• O. D : 12.5 to 300 mm (standard)
• I.D : 6 to 275 mm (standard)
• Length : 100mm (standard) upto 300mm in special cases
• We can also supply larger sizes on request rods
P.T.F.E Rods Specifications:
• Dia : 3 to 250 mm (standard)
• Length : 300-900mm (standard)
P.T.F.E sheets specifications:
• Sizes available : 3 to 100 mm
• Thickness : 3-25mm thickness sheets available on request ptfe-filler also PTFE thin sheets
P.T.F.E Flexible Sheet Specifications:
• Width : 300-600mm
• Thickness : 0.1 to 3.5 mm
• Thin sheets are available in roll form or cut to length form. available in roll form or length cut to request.
• Fillers Specifications: glass/carbon/graphite/bronze+mos2.
UHMWEPE Round Bars | Rods
UHMW (aka UHMW-PE) offers a combination of excellent properties - outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating properties and excellent mechanical properties. UHMW resists wear, friction and corrosion and thus it cuts maintenance costs, energy consumption and extends equipment life. Applications for UHMW materials include guide rails, wear plates, rollers, conveyor augers, bin and hopper lines, chutes, bearings, bushings and gears.
Material description
• Semi-crystalline thermoplastic:
• DIN EN ISO 1043-1: PE-UHMW/PE / polyethylene ultra high molecular weight
• Engineering plastics
Material properties:
• Low density
• Almost no absorption of moisture
• very good sliding properties
• Excellent wear resistance
• Only limited weldability
• Is resistant to very high impact loading
• Can be in contact with food (FDA)

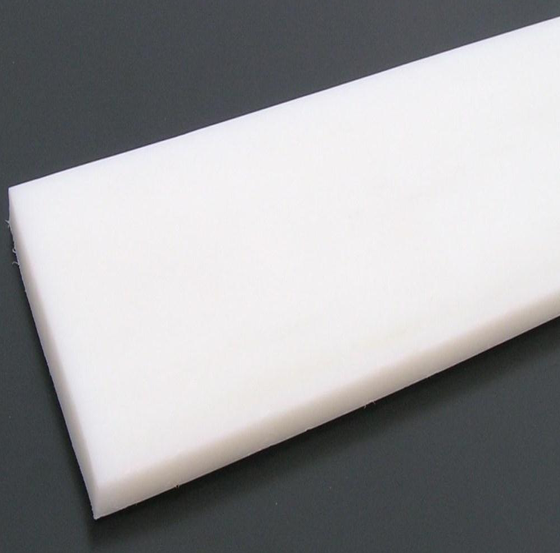

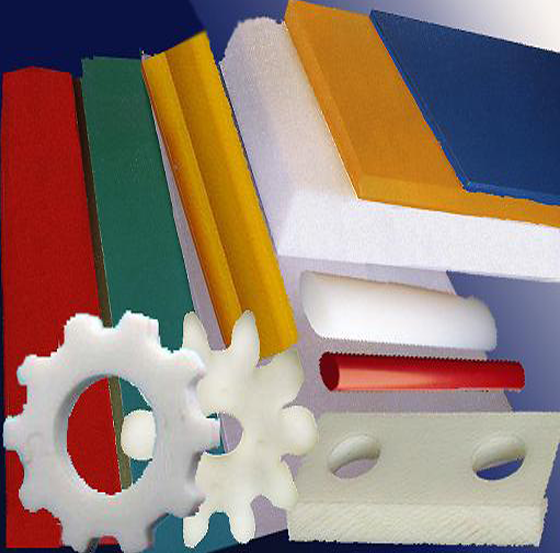

UHMWEPE Sheets
We are the most preferred manufacturers of UHMW Sheet to our esteemed clients. These sheets are known for their superb wear resistance and resistant to very high impact loading. UHMW sheet are blend of excellent properties like outstanding abrasion resistance, superior impact resistance, non-sticking, self-lubricating properties and outstanding mechanical properties. These sheets find their applications in guide rails, wear plates, rollers, chutes, bearings, bushings and gears.

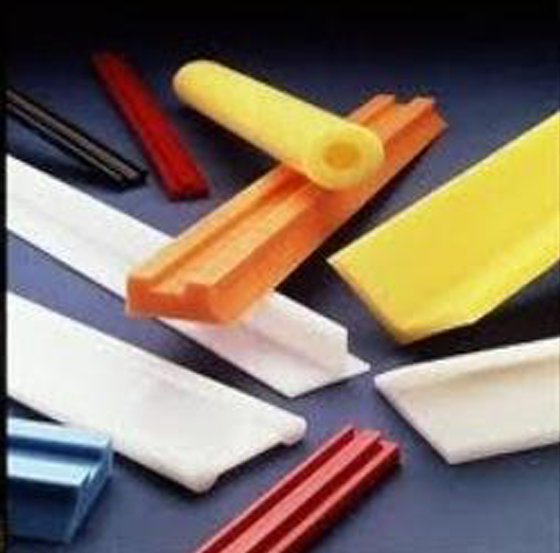

UHMWPE Profile
• “Pragnya" UHMWPE Profiles:
• Available in Natural White, Green or Black Colour
• Available in 6 mtr L or longer in coil form
• UHMW PE Z Profiles
• UHMW PE L Profiles
• UHMW PE Clamp Profiles
• UHMW PE T Profiles
• UHMW PE U Profiles
• UHMW PE C Profiles
• UHMW PE Side Guide Profiles
• UHMW PE Square/ Rectangular Profiles
• UHMW PE Clip Profiles
• UHMW PE Special Profiles.

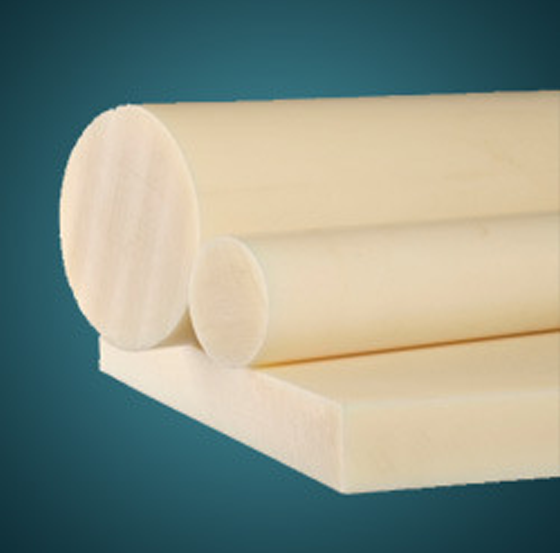

Cast Nylon Sheet / Rounds Bars
Cast Nylon Rods, Sheets & Pipe. We are a premier producer of cast nylon. The company's product offerings include cast nylon rods, sheets, rectangular and tubular bars, which are further used to make engineering components. Our cast nylon, available in different shapes and sizes, has many successful applications in various industries.
• Cast Nylon Grade Color: Natural Ivory, Black
• Cast Nylon MOS2 filler Color : Grey
• Cast Nylon Oilon Grade Color : Military Green
• Specific Gravity : 1.15 to 1.17
• Temperature Resistant : 1210 to 149 C
Cast Rods
• Dia 25 To 300mm
• Length 300,500 & 1000mm
• Cast Sheets
• Thickness 6 To 100mm
• Width & length
• 300x300mm
• 600x600mm
• 500x1000mm
• 1000x1000mm
• Cast Bushes
• Dia 50 To 300 mm thickness 25mm onwards
• Length 300,500 & 1000 mm
Delrin Round Bars
Polyacetal also known as Polyoxymethylene (POM) is a thermoplastic polymer manufactured by the polymerization of formaldehyde. It is a highly crystalline thermoplastic, charactererised by high tensile strength, stiffness, low coefficient of friction and excellent dimensional stability.
This polymer has high mechanical strength, stiffness, hardness and creep resistance, and is resistant against thermal-oxidative degradation.
Polyacetal rods offer a unique combination of properties not available with metals or other plastics.
Standard Sizes:
Round: 6mm to 250mm dia (Natural and Black)
Square: 1" x 1" to 3" x 3"

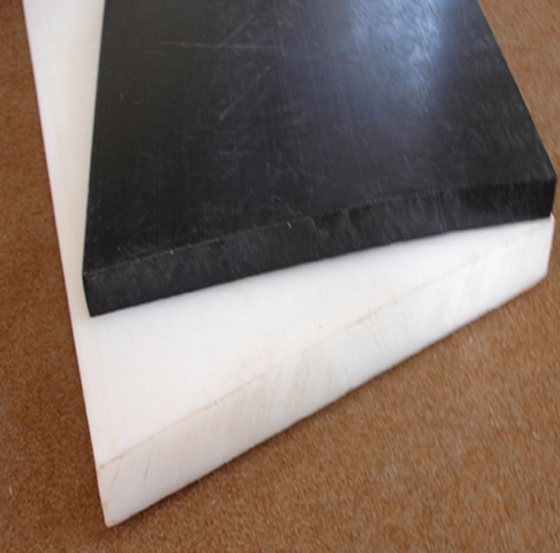

Delrin Sheet
The expert team of our company offers an excellent variety of Delrin Sheet to our valuable clients. Manufactured using high quality raw material, these sheets do not absorb a large amount of moisture and are resistant to a wide range of solvents. Meeting FDA standards, Delrin sheets are appreciated for their low friction and high wear resistance. Having a service temperature range of -20o to 185o F, intermittent 200o F, these sheets act as excellent material for bearings, gears, cams and other small part.
Specification
Width : 1 meter
Length : 2 meter
Thickness : 3 to 100 mm

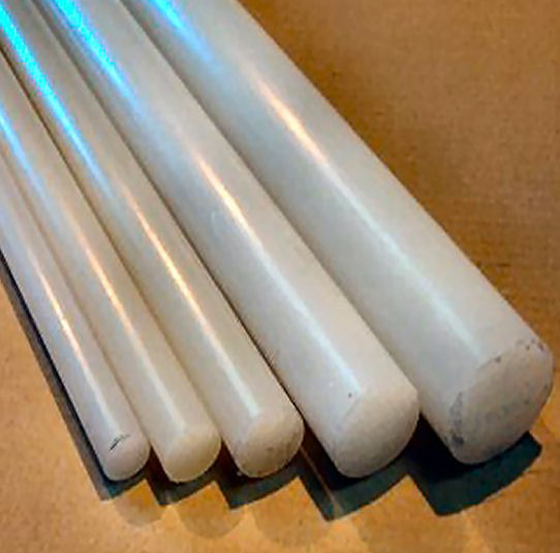

PP Round Bars
Polypropylene is an economical material that offers a combination of outstanding physical, chemical, mechanical, thermal and electrical properties. Compared to low or high-density polyethylene, it has superior working temperature and tensile strength.
Polypropylene rods provide excellent resistance to organic solvents, degreasing agents and electrolytic attack. They are light in weight, resistant to staining and have a low moisture absorption rate. These rods are tough, heat-resistant and ideal for the transfer of hot liquids or gases, having excellent resistance against acids and alkalis.
Standard Sizes
Round: 19 mm to 300 mm dia (PPHP & PPCP)
Applications
Used for Impellers in chemical pumps, flanges in chemical lines, pulleys, and various machine parts.

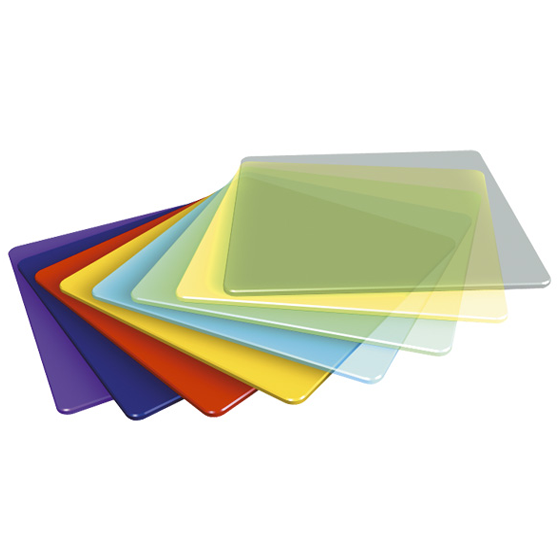

PP Sheets
Backed by our industrial experience and cutting edge technology, we offer extensive variety of PP Sheet. Manufactured using high quality raw material, these sheets can be heat formed, shaped and welded to fabricate ducts, hoods. Well appreciated for chemical resistance in corrosive environment, these sheets have low density, excellent weldability and good sliding properties.
